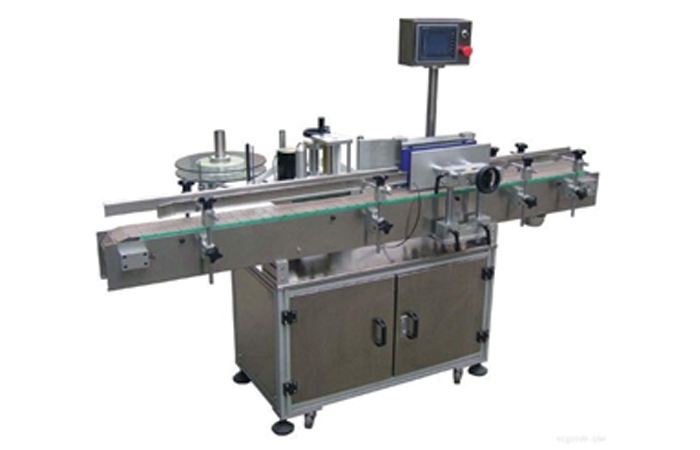

A sophisticated label dispenser system synchronizes all the labeler components, allowing the speed to be regulated with a single point and maintaining precise labeling even during start—up, stopping or slow down stages, synchronized with the entire line.
Capability of this model is labelling up to 120 BPM (Square Bottle) depending on products and label size.
Type | Roll form sticker labeling type |
---|---|
Max. Bottle Volume | 2 Liter |
Neck Diameter Range | 28-30mm |
Max. Container Diameter | 95mm |
Max. Container Height | 360mm |
Labeling Range | 200 ml to 2000 ml |
Output/Min. | 20 – 40 bottles/min (For Round Bottles) 20 – 120 bottles/min (For Square Bottles) |
Power | 4 Kw |
Working part | SS/PP / Nylon and Teflon as required. |
Conveyor length | 6 ft |
